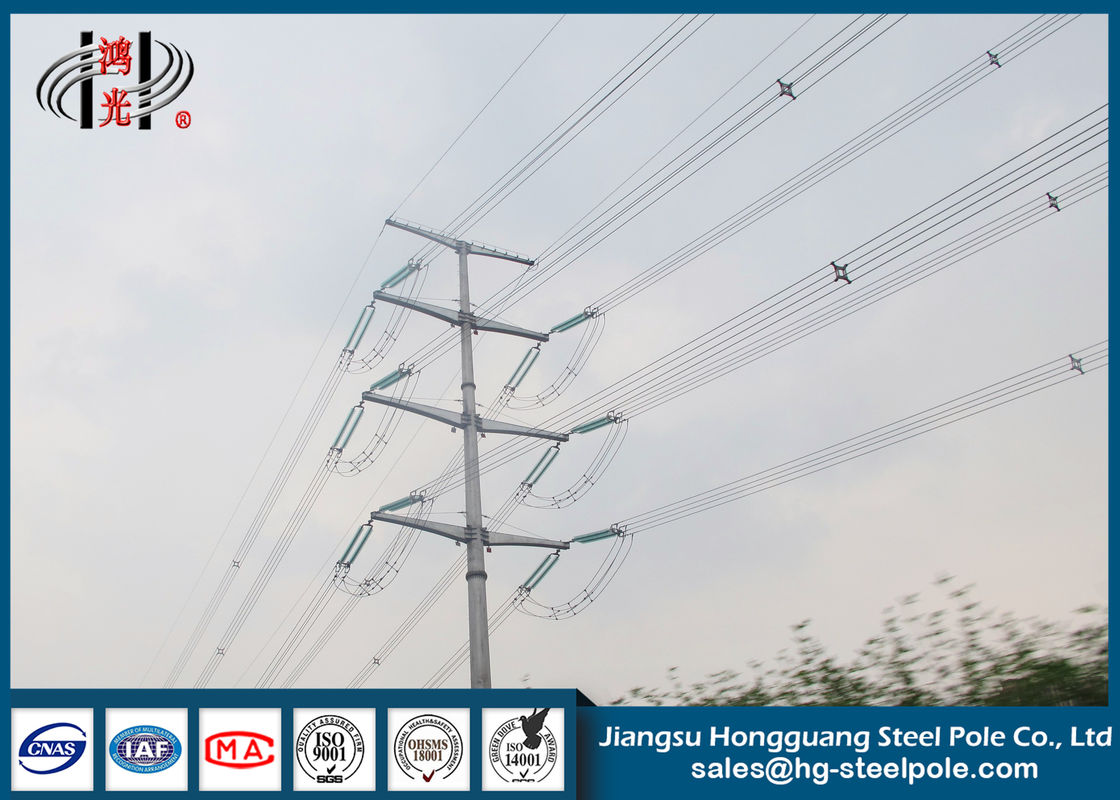

Custom 220KV Electrical Steel Power Transmission Poles , Electrical Power Poles

    • Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles
    • Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles
  • Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: JSHG
    گواهی: ISO/CNAS/IAF/CA
    Model Number: HG-SP-220KV

    پرداخت:

    Minimum Order Quantity: One 40 HQ Container
    قیمت: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Voltage Grade: 220KV Appearance Treatment: Hot-dip galvanized / Painting
    Material: Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc. Wall thickness: 8~15mm
    Galvanization: Chinese standard GB/T 13912-2002 and American standard ASTM A123 Joint: Joint with insert mode, flange mode

    Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles

    Specifications:

    Application

    • Overhead Electrical Power transmission and distribution line

    Type

    • Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc.

    Shape

    • Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)

    Material

    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, and others equivalent steel material

    Once Forming

    • 16m Once forming without joint

    Welding

    • Welding complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • Internal and external welding makes the pole more beautiful in shape
    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Life Period

    • More than 25 years, it is according to installing environment

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization

    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Advantages

    • Short Construction Cycle
    • Less Land Occupation
    • Low Overall Cost
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers



    Description:

    Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.

    The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years.


    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles

    Quality Control Management





    JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
    and sulfur microcomputer analyzer etc.


    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.

    Engineering and Design Management

    “Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



    Since the establishment, JSHG have put forward thousands of conical pole design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.



    Product Details:



    Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles

    Packaging & Shipping:



    Custom 220KV Electrical Steel Power Transmission Poles ,  Electrical Power Poles


     Our Services



    • Reply within 24 Working Hours
    • Factory Direct Sale
    • More than 15 Years Design & Manufacture Experience
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Products
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Technical Support by E-mail
    • Calling service


    Contact Us


    Jiangsu Hongguang Steel Pole Co., Ltd


    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212


    Telephone: +86 510 878 441 56


    Fax: +86 510 878 435 28


    Mobile: +86 138 615 059 69


    Skype:  tangjia870124

    Please feel free to contact us!
